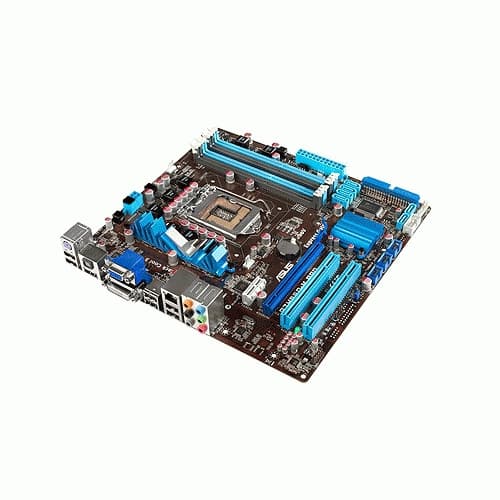

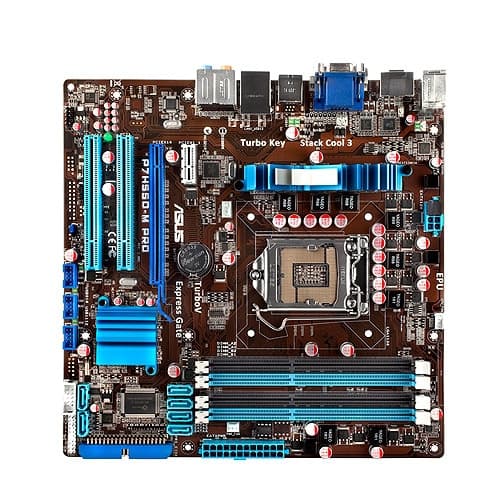

ASUS P7H55D-M PRO LGA 1156 (Socket H) micro ATX

Description

<b>LGA1156 Intel Lynnfield/Clarkdale Processor Ready</b><br><br>This motherboard supports the latest Intel Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel Lynnfield and Clarkdale processors are the most powerful and energy efficient CPUs in the world. Moreover, Intel Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware.<br><br><b>Intel H55</b><br><br>The Intel H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel Core i7/ Core i5/Core i3/ Pentium Processors. Intel H55 chipset provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Using Intel Core i5 6 Series, Core i3 5 Series and Pentium CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance! <br><br><b>PCIe 2.0</b><br><br><b>Double Speed; Double Bandwidth</b><br>This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. <br><br><b>Dual-Channel DDR3 2133(O.C.) / 1333 / 1066 support</b><br><br>The motherboard supports DDR3 memory that features data transfer rates of 2133(O.C.) / 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.

Details

Depth

245 mm

Width

245 mm

PCI slots

2

Audio chip

Realtek ALC892

LAN controller

Realtek RTL8112L

BIOS memory size

64 Mbit

Processor socket

LGA 1156 (Socket H)

CPU fan connector

Yes

Power source type

ATX

USB 2.0 connectors

3

HDMI ports quantity

1

Networking features

10/100/1000 Mbps

PS/2 ports quantity

1

DVI-D ports quantity

1

PCI Express x1 slots

1

S/PDIF out connector

Yes

Audio output channels

7.1 channels

PCI Express x16 slots

1

Manageability features

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Number of memory slots

4
