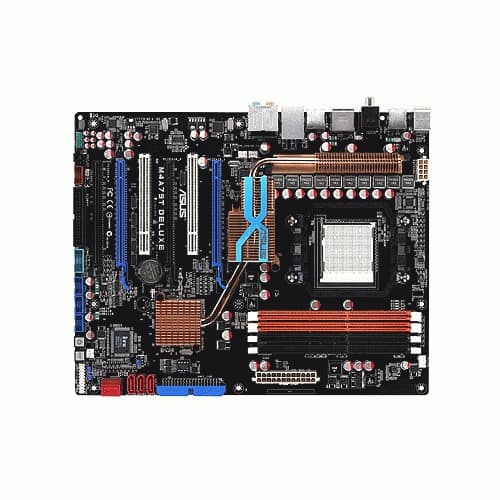

ASUS M4A79T Deluxe Socket AM3 ATX

Description

<b>AMD® Phenom™ II/ Athlon™ X4/ Athlon™ X3/Athlon™ X2 processors (socket AM3)</b><br>AMD® Phenom™ II/ Athlon™ X4/ Athlon™ X3/Athlon™ X2 processors (socket AM3) This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.<br><br><b>Native DDR3 1066(O.C.) Support</b><br>This motherboard supports native DDR3 1600(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.<br>* DDR3 1600(O.C.) is supported by AM3 CPUs only. Refer to www.asus.com for the supported CPU models.<br><br><b>AMD 790FX Chipset</b><br>AMD 790FX Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and quad PCI Express™ 2.0 x16 graphics. It is optimized with AMD latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.<br><br><b>PCIe 2.0 support</b><br>This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.<br><br><b>ATI CrossFireX™ Technology</b><br>ATI’s CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher anti-aliasing, anisotropic filtering, shading, and texture settings. Adjust your display configurations, experiment with the advanced 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center.<br><br><b>EPU</b><br>The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money!<br>*ASUS EPU is supported by AM2+/AM3 CPU only.<br><br><b>AI Nap</b><br>With AI Nap, the system can continue running at minimum power and noise when you are temporarily away. To wake the system and return to the OS environment, simply click the mouse or press a key.<br><br><b>Express Gate</b><br>Taking only 5 seconds to bootup, Express Gate is the one-stop gateway to instant fun! It´s a unique motherboard built-in OS. You can utilize the most popular Instant Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch with friends, or quickly check on the weather and e-mails just before leaving your house. What´s more, the user-friendly picture manager lets you view your pictures without entering Windows at anytime!<br>*The actual boot time is subject to hardware configurations and product models.<br><br><b>Stack Cool 2</b><br>ASUS Stack Cool 2 is a fan-less and zero-noise cooling solution that lowers the temperature of critical heat generating components. The motherboard uses a special design on the printed circuit board (PCB) to dissipate heat these critical components generate.<br><br><b>ASUS Q-Fan 2</b><br>ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.<br><br><b>Aesthetic Heat- pipe</b><br>Lowers Temperatures by up to 10°C<br>The aesthetic heat- pipe design effectively directs the heat generated by the chipsets to the heatsink near the back I/O ports - where it can be carried away by existing airflows from the CPU or a bundled optional fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures by up to 10°C without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date.<br><br><b>Noise Filter</b><br>This feature detects repetitive and stationary noises (non-voice signals) like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.<br><br><b>SATA on the Go</b><br>The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.<br><br><b>IEEE 1394a interface</b><br>IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.<br><br><b>High Definition Audio</b><br>Enjoy high-end sound system on your PC!<br>The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.<br><br><b>S/PDIF-out on Back I/O Port</b><br>PCI2This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.<br><br><b>GreenASUS</b><br>The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.

Details

Depth

244 mm

Width

305 mm

BIOS type

AMI

Audio chip

Realtek ALC1200

RAID levels

0, 1, 5, 10, JBOD

Microphone in

Yes

CD/AUX audio in

Yes

Expansion slots

2 x PCI 2.2

S/PDIF out port

Yes

BIOS memory size

64 Mbit

Drivers included

Yes

Processor socket

Socket AM3

CPU fan connector

Yes

Headphone outputs

1

Power source type

ATX

ECC сompatibility

ECC & Non-ECC

USB 2.0 connectors

3

Networking features

Gigabit Ethernet

PS/2 ports quantity

2

Power fan connector

Yes
